Profile drawing of Lützow
31500 tMaximum displacement
210,4 mOverall length
26,4 knMaximum speed
1112-1182Complement

A tactical victory paid for with a ship

Lützow's short career culminated at Jutland, where her gunnery inflicted major losses before underwater damage made the newest German battlecruiser impossible to save.

01

A cleaner and more powerful design

Eight 30.5 cm guns in centerline turrets gave the class stronger firing arcs and a silhouette that anticipated later fast capital ships.

02

Flagship in the decisive action

Leading the scouting force at Jutland, she fought the British battlecruisers and battle line until repeated hits opened the bow to uncontrollable flooding.

03

Abandoned after Jutland

Her crew was removed during the retreat and German torpedoes sank the crippled ship rather than leave her to the enemy.

Design and service

The story of Lützow

The development of German battlecruisers in the Imperial Navy can be easily traced back to the last armored cruisers, the Blücher. All battlecruiser evolved from this design, improving from class to class up to the Seydlitz, all showing a very similar outer appearance. The following three battlecruisers of the Derfflinger class were a major change in which marked the step to modern battlecruisers. Although the previous ships proved to be very good protected, their diagonal mounted midship turrets were a clear sign of their origins at the beginning of the century.

The Derfflinger class had all gun turrets mounted in the center line and were the only German battlecruisers with 30,5 cm guns, but the higher weight caused the reduction of only 8 guns. The armor scheme was quite similar to those of the previous battlecruisers and made them good protected ships. A modified bow design should improve the seagoing capabilities of this battlecruisers, but although there was an improvement, they were still very "wet" ships.

All ships were commissioned after the outbreak of World War I Derfflinger and Lützow took part in the Battle of Jutland, and were badly damaged when they were hit over twenty times each. Since Lützow was damaged too badly, the ship had to be sunk after the battle, it was the biggest ship lost on by the Imperial Navy. Hindenburg was only commissioned in 1917 and did not see much action in the war. The two surviving ships shared the fate of most other Imperial Navy ships - they ended at Scapa Flow.

Lützow's brief operational career culminated at Jutland. After taking part in the bombardment of Yarmouth and Lowestoft, she entered the battle on 31 May 1916 and helped destroy the British battlecruiser Invincible. Twenty-four heavy-caliber hits and a torpedo strike caused progressive flooding, leaving more than 7,500 tons of water inside the ship. Unable to reach German waters, Lützow was abandoned and sunk by two torpedoes from the German torpedo boat G38.

Operational history

Service timeline

Breakdown of turbine system during trials.

Repairs.

Coastal bombardment of Yarmouth and Lowestoft.

Battle of Jutland: Lützow sinks British battlecruiser Invincible. The ship is badly damaged (24 heavy hits and one torpedo hit) and tries to return to Germany with over 7500 ts water in the ship. Since it cannot kept afloat, Lützow is sunk by the torpedo boat G38 with two torpedoes about 100 miles west of the Danish coast.

Wreck is partly broken down.

At a glance

Technical profile

Dimensions, armament, protection and performance.

Dimensions

Size (Max)
31500 t
Length (Total)
210,4 m
Length (Waterline)
210,0 m
Beam
29,0 m
Draft
9,20 m
Crew
1112-1182

Armament

30,5 cm L/50
8
15 cm L/45
14
8,8 cm
8
60cm torpedo tubes
4

Armor

Deck
30 mm
Belt
300 mm
Command Tower
300 mm
Turrets
270 mm

Machinery

Shafts
4
Turbines
4
Type
Marine

Performance

Total Performance
80988 shp
Speed
26,4 kn
Range
5600 sm at 14kn

The archive

Photographs

Original postcard and photographic material from the private collection.

Lützow
Lützow (unknown postcard)

The archive

Models

Ship models in 1/1250 scale.

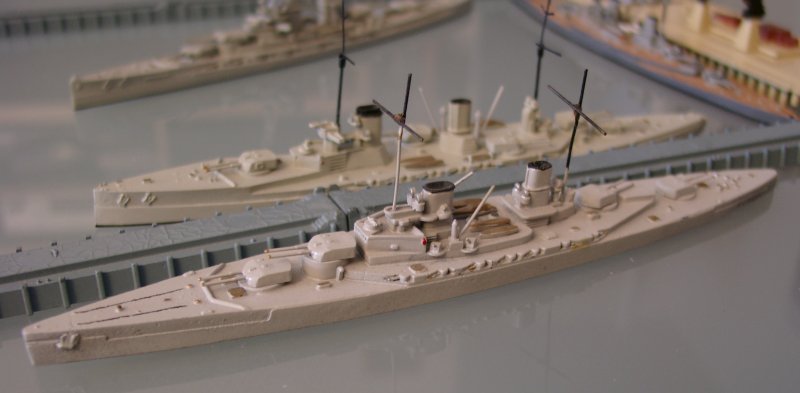

Lützow
Navis 60 Lützow

Construction record

Lützow

Laid down
Schichtau Danzig, July 1912
Launched
29.11.1913
Commissioned
08.08.1915
Fate
scuttled on 31.05.1916 after the Battle of Jutland
