Spähkreuzer

Huge destroyers to be used as reconnaisance cruisers.  Spähkreuzer  Class

   History   Technical Data 38   Technical Data 40   1:1250 Model

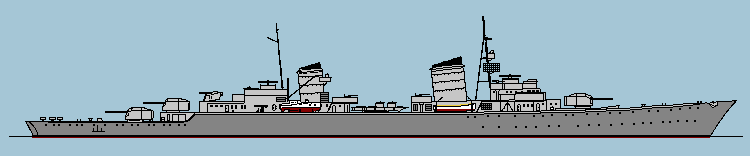

Appearance of the Spähkreuzer 1938


Although called Spähkreuzer - Reconnaissance Cruiser - those ships were basically large destroyers capable for Atlantic Operations. Based on traditional destroyer design, several project studies started in 1938 to develop a large destroyer of the size of a CL. Like most German CLs, those ships were planed to get a mixed propulsion system, geared turbines for high speed and diesel engines for long cruises.
It was planed to use this ships in combinations of the new battleships of the Z-Plan in the North Atlantic where the Spähkreuzer should be the eyes of a larger battle fleet.

With the lessons learned by the first naval actions in World War II, the plans for the Spähkreuzer were modified several times, after the "Spähkreuzer 38" later designs were called "Spähkreuzer 39" and "Spähkreuzer 40"  which had improved range, armor protection and a float plane on board.

The first three ships (SP1, SP2, and SP3, formerly named Z40, Z41, Z42) were ordered in February 1941 at the Germania Shipyard in Kiel. In December of 1941, the engines for the next three ships (SP4, SP5, SP6) were  ordered too, but not the ships themselves.

Spähkreuzer

Spähkreuzer SP1 - SP3


Only SP1 was laid down, but its construction planes were destroyed during a air raid. In April 1942, construction of all Spähkreuzer was stopped and the focus switched to the construction of normal destroyers.


  [Bre91]   [BreElf94]   [BreKoo95]   [Groe2]   [Whi88
  Thanks to:  B. Zweigait
