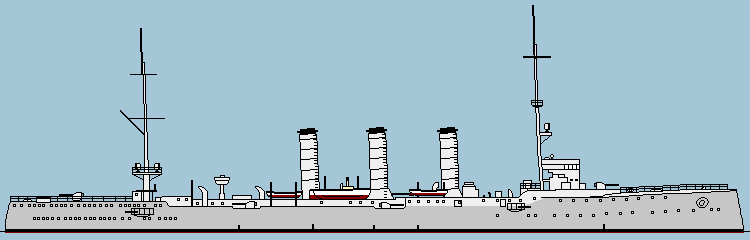

Profile drawing of Mainz
4889 tMaximum displacement
130,5 mOverall length
26,8 knMaximum speed
367Complement

A fleet scout lost in wartime

Mainz turned the Kolberg-class design into a distinct career shaped by the Imperial Navy's changing peacetime and wartime demands.

01

More speed and a heavier broadside

Four larger turbine cruisers strengthened the scouting force and entered war as active units in the North Sea and Baltic.

02

The service record of Mainz

Detached patrol duty placed her in the path of superior British forces at Heligoland Bight, where she fought until disabled and sunk.

03

Lost in 1914

Mainz was sunk at the Battle of Helgoland on 28.04.1914.

The full story

History of Mainz

The small cruisers of the Kolberg class were significant bigger than their predecessor, enabling to add two additional 10,5 cm guns to the ships. All four ships had different kind of turbines to find the best of them for later cruiser designs: Melms & Pfenninger (Kolberg), Parsons (Augsburg), Schneider-Zoelly (Cöln) and AEG-Curtis (Mainz). Those installed in the Cöln proofed to be very unreliable therefore they were exchanged with Germania-turbines after trials.

Like many other small cruisers, their main armament was replaced during the war, the twelve 10,5 cm guns were replaced with six 15 cm guns. They were good seagoing ships, but had a bad maneuverability.

Cöln and Mainz were both sunk in the Battle of Helgoland where the German reconnaissance forces were attacked by British battlecruisers. Mainz was sunk early in the battle after it successfully damaged the destroyers Laurel, Liberty and Laertes. It then was hit by a torpedo disabling the ship. with only one gun left, the Mainz then drifted toward four British cruisers which finally sunk the German ship.

At a glance

Technical profile

Dimensions, armament, protection and performance.

Dimensions

Size (Max)
4889 t
Length (Total)
130,5 m
Length (Waterline)
130,0 m
Beam
14,0 m
Draft
5,73 m
Crew
367

Armament

10,5 cm
12
5,2 cm
4
45 cm Torpedo tubes
2
Mines
100

Armor

Deck
50mm (max)
Command tower
100 mm (max)

Machinery

Shafts
2
Turbines
2
Type
AEG-Curtiss

Performance

Total Performance
22040 shp
Speed
26,8 kn
Range
3630 miles at 14 kn

Construction record

Mainz

Laid down
A.G. Vulcan Stettin, 1908
Launched
23.01.1909
Commissioned
01.10.1909
Fate
sunk at the Battle of Helgoland on 28.04.1914
